Viwinco Cambridge Collection

Viwinco Cambridge Collection

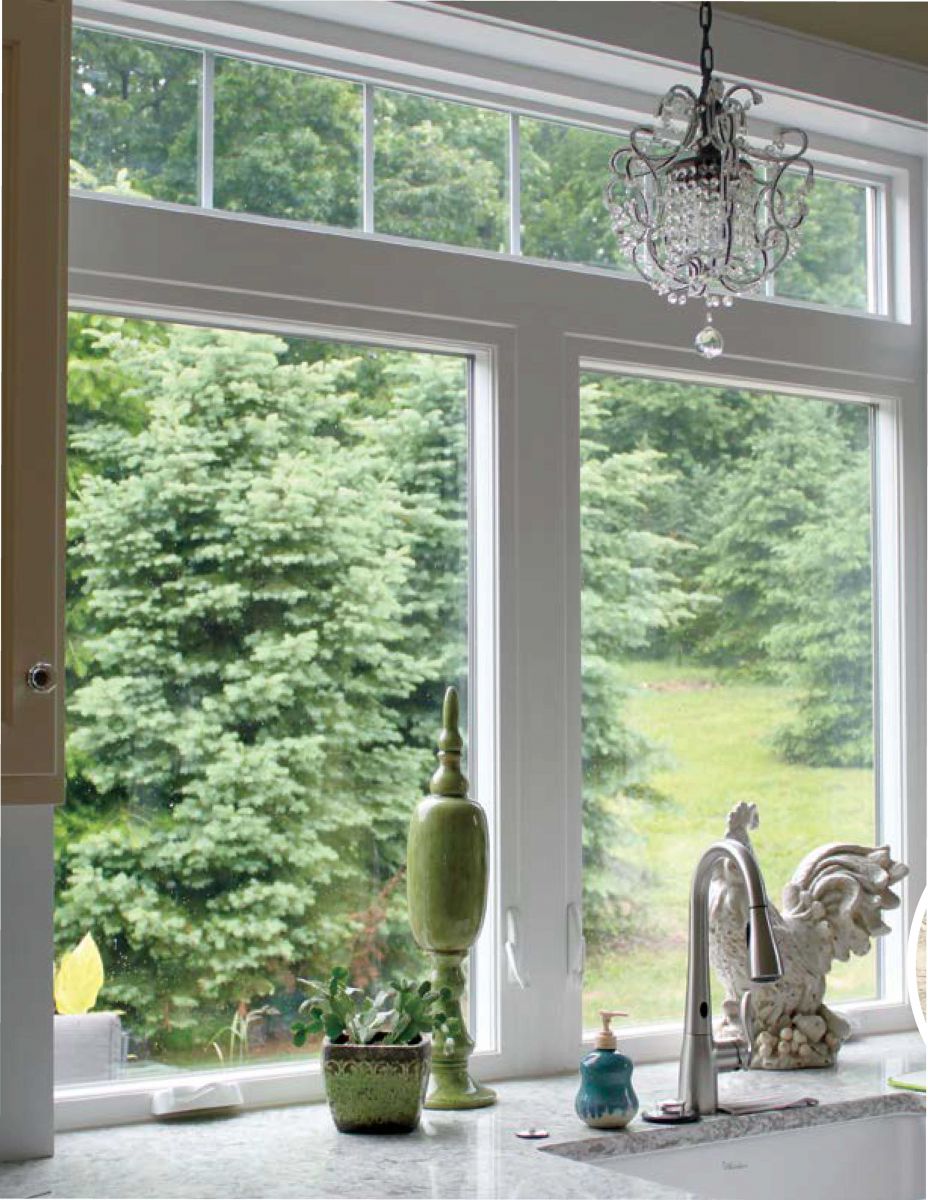

Casement Windows

Casement windows provide beautiful views and smooth operation. Use as the only window style in your homeor to complement other styles. Hinged at the left or the right depending on your preference, they swing open to the outside with a simple turn of the handle. Since they seal tightly when closed, they're highly energy efficient. Multiple casements may be combined in a master frame to create a window wall. Our structurally reinforced window wall mull maximizes visible glass between sashes for a wider viewing area and abundant light.

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Traditional craftsmanship look: with a beveled exterior and 45-degree mitered glazing bead
• Operating hinges open 90 degrees: Allows for easy cleaning
• Folding handle design: Tucks away for a streamlined, clean look and won't interfere with window covering
• Multipoint lock: for added security and snug sash closure
• Triple weatherstripping: Creates a barrier against wind, water, sound, and airborne particles--and helps provide top thermal performance
• Integral glazing bead: for weather-tight seal
• Aluminum reinforcement: in the sash and frame provides structural integrity; fiberglass reinforcement optional
• Stainless steel hardware: comes standard

Viwinco Cambridge Collection

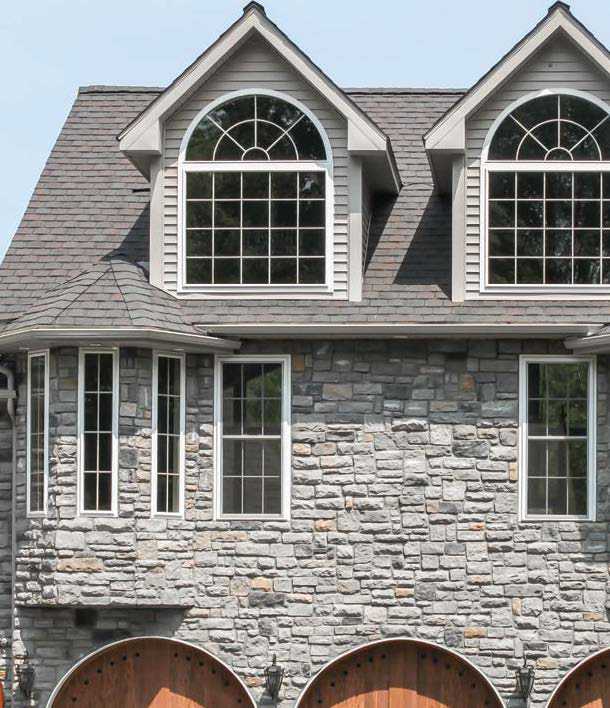

Picture Windows

Picture windows let the light, and the view, pour in. A transom is a structural term that refers to a horizontal beam above a window or door that separates it from a window above it. A transom window is a picture unit that is placed in the space above the transom. These are often used to provide privacy while allowing natural light to flood into the room. Add a transom window or geometric shape above for a particularly distinctive look, or enrich the atmosphere in any room by flanking with different styles.

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Traditional craftsmanship look: with a beveled exterior and 45-degree mitered glazing bead
• In new construction applications: integral J-channel saves time on exterior finishing; snap-in accessory expands J-channel to 1-1/4" to receive a greater range of cladding thicknesses. Pre-punched, integral 1-1/4" nailing fin also contributes to a trouble-free installation

Viwinco Cambridge Collection

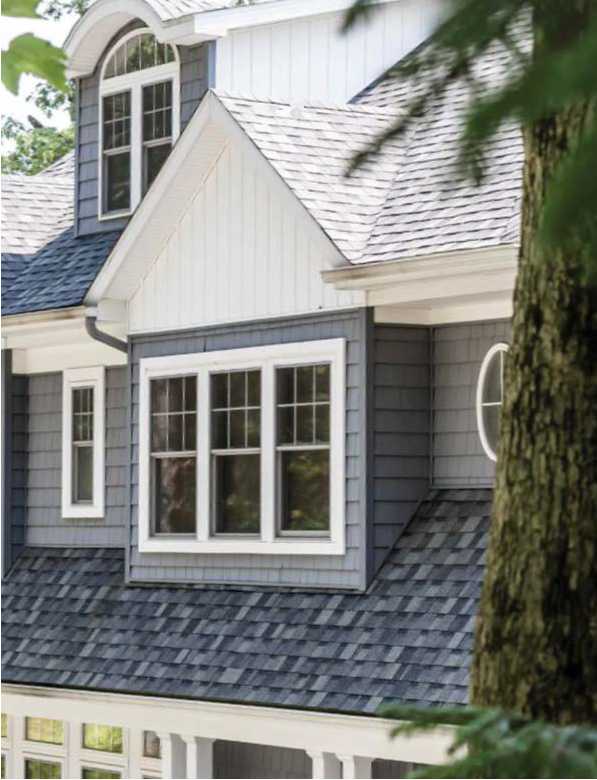

Single & Double Hung Windows

Traditional and stylish, our single- and double-hung windows feature beautiful detailing and excellent energy efficiency. Those in our Cambridge, S-Series, and OceanView line come standard with Tilt-n-Lock patented technology, which adds reinforcement for structural performance and makes it easy to open, close and tilt the window in for cleaning with one hand.

On Double-Hung windows both the top and bottom sashes are operable: the bottom lifts up, the top pulls down. Double-Hungs offer beautiful sight lines and great air circulation.

On Single-Hung windows the bottom sash is operable and the top sash is fixed. Just raise the bottom sash for the ventilation you desire. Single-hungs are economical, easily serviceable, and allow for trouble-free access to dry wall materials during construction. They also provide exceptional energy efficiency.

Oriel windows feature a smaller or shorter upper sash than lower sash (40/60 split).

Reverse Oriel Windows contain a smaller or shorter lower sash than upper sash (60/40 split).

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Constant force balance: Our system never needs adjustment, and allows window to be smoothly opened and closed
• Chambered profiles: for thermal efficiency and structural strength
• Five-degree true sloped sill: directs water and debris away from the house
• Sash interlock: for added security, thermal efficiency, and energy conservation
• Constant force balance: Our system never needs adjustment, and allows window to be smoothly opened and closed
• Traditional craftsmanship look: with a beveled exterior and 45-degree mitered glazing bead
• 1-3/8 weatherstripped sill dam: fights drafts and water infiltration
• Equally-sized glass: in both sashes for even sight lines
• Dual nite vents: to restrict sash travel

Viwinco Sliding Collection

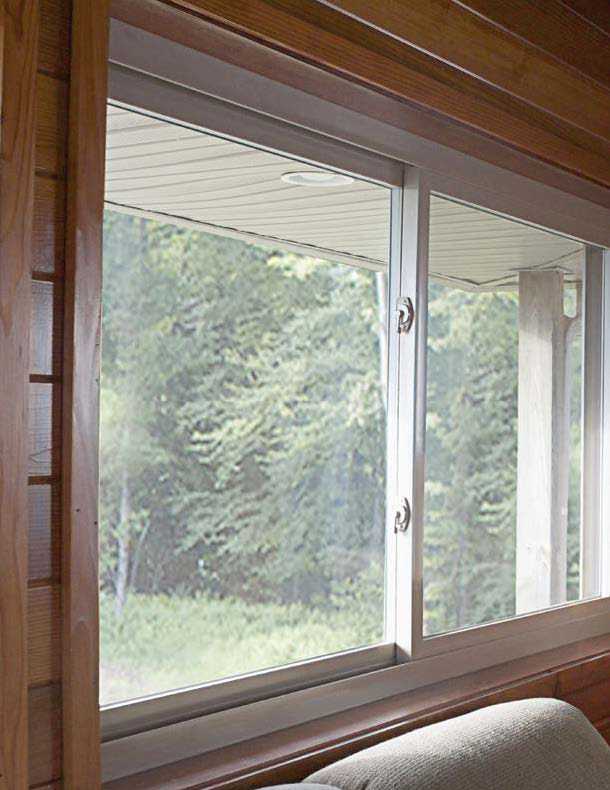

Sliding Windows

With their contemporary, clean design and wide viewing area, sliding windows create a sense of spaciousness in a room. Since the sashes slide open horizontally with no lifting force required, they're particularly convenient for hard-to-reach areas, such as above the sink or tub. Sliding windows are available with all our color and other options.

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Sash interlock: for added security, thermal efficiency, and energy conservation
• Traditional craftsmanship look: with a beveled exterior and 45-degree mitered glazing bead
• Cam-style lock: with adjustable keeper for reliable alignment and positive latching
• In new construction applications: integral J-channel saves time on exterior finishing; snap-in accessory expands J-channel to 1-1/4" to receive a greater range of cladding thicknesses. Pre-punched, integral 1-1/4" nailing fin also contributes to a trouble-free installation
• In 2-lite sliders: both sashes operate for ventilation; 3-lite sliders feature a fixed center lite and venting end lites. The center lite may be made larger or the same size as the venting lites
• Monorail-design slider pad: in sash track for smooth glide operation
• Extruded designer pull rail: make opening and closing a cinch
• Easy cleaning: operating sashes lift out

Viwinco Cambridge Collection

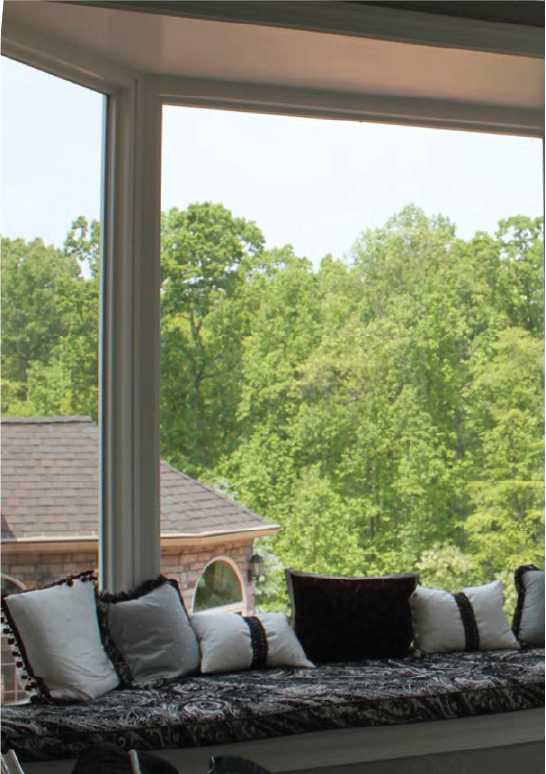

Bay & Bow Windows

No other window creates the sense of space that a bay or bow window does. Since both project outward, they have a transformativeeffect on a home, making it seem larger and more welcoming. Enjoy gazing at your surroundings from your window seat. Design your own bay or bow unit with single-hung, double-hung, casement or picture styles

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Chain suspension system: attaches directly to frame of house for structurally sound installation
• Tie rods: uniting the headboard and seat board provide stability
• Headboard and seat board manufactured from insulated marine-grade plywood with birch veneer
• Paintable or stainable to match your decor: oak veneer headboard and seat board also available as an upgrade
• Multiple configurations: Bay windows are available in 30 or 45 degree angles; bow windows are available in 3-lite, 4-lite,or 5-lite (as pictured above) configurations, at a 10 degree angle

Viwinco Cambridge Collection

Geometric Windows

Geometric windows add character and individuality to your home. Use to provide an architectural accent in a particular room, to bring light into a hallway or drama to a great room, or to provide detailing around a focal point such as a fireplace. Wherever you choose to place them, you'll create a truly spectacular look all your own.

Use our geometric shapes alone, or pair with a different fixed or operable window. They come in the shapes below or in custom shapes. Custom grid patterns are also offered. Geometric windows are fixed, or non operable. They are available with all our color and other options.

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Multi-chambered profile: provides top insulating value by trapping dead air, adding to the window's energy efficiency
• Traditional craftsmanship look: with beveled exterior and 45-degree extruded glazing bead mitered in the corners
• In new construction applications: integral J-channel saves time on exterior finishing; snap-in accessory expands J-channel to 1-1/4" to receive a greater range of cladding thicknesses. 1-1/4" integral, pre-punched nailing fin also contributes to a trouble-free installation

Viwinco Cambridge Collection

Awning & Hopper Windows

Awning windows share some of the same features as casement windows, such as the curved folding handle which you turn to operate the window, and the option to combine units to create an expansive window wall in a main frame. Hinged at the top, awning windows open outward. They look great topped by a fixed transom. Awning windows are available with all our color and other options.

Hopper windows are latched at the top and open inward. They're perfect for basements, attics or small spaces where venilation and additional light is desired. Hoppers are available only in our Edgemont line, in white or tan.

• High-performance glass package: 15/16" double-strength insulated glass with low-e glass, low-conductance spacer, and argon gas fill
• Fully fusion-welded frame and sash: Provides strength, durability and low maintenance
• Traditional craftsmanship look: with a beveled exterior and 45-degree mitered glazing bead
• Folding handle design: Tucks away for a streamlined, clean look and won't interfere with window covering
• Multipoint lock: for added security and snug sash closure
• Triple weatherstripping: Creates a barrier against wind, water, sound, and airborne particles--and helps provide top thermal performance
• Integral glazing bead: for weather-tight seal
• Aluminum reinforcement: in the sash and frame provides structural integrity; fiberglass reinforcement optional
• Extruded Screens
